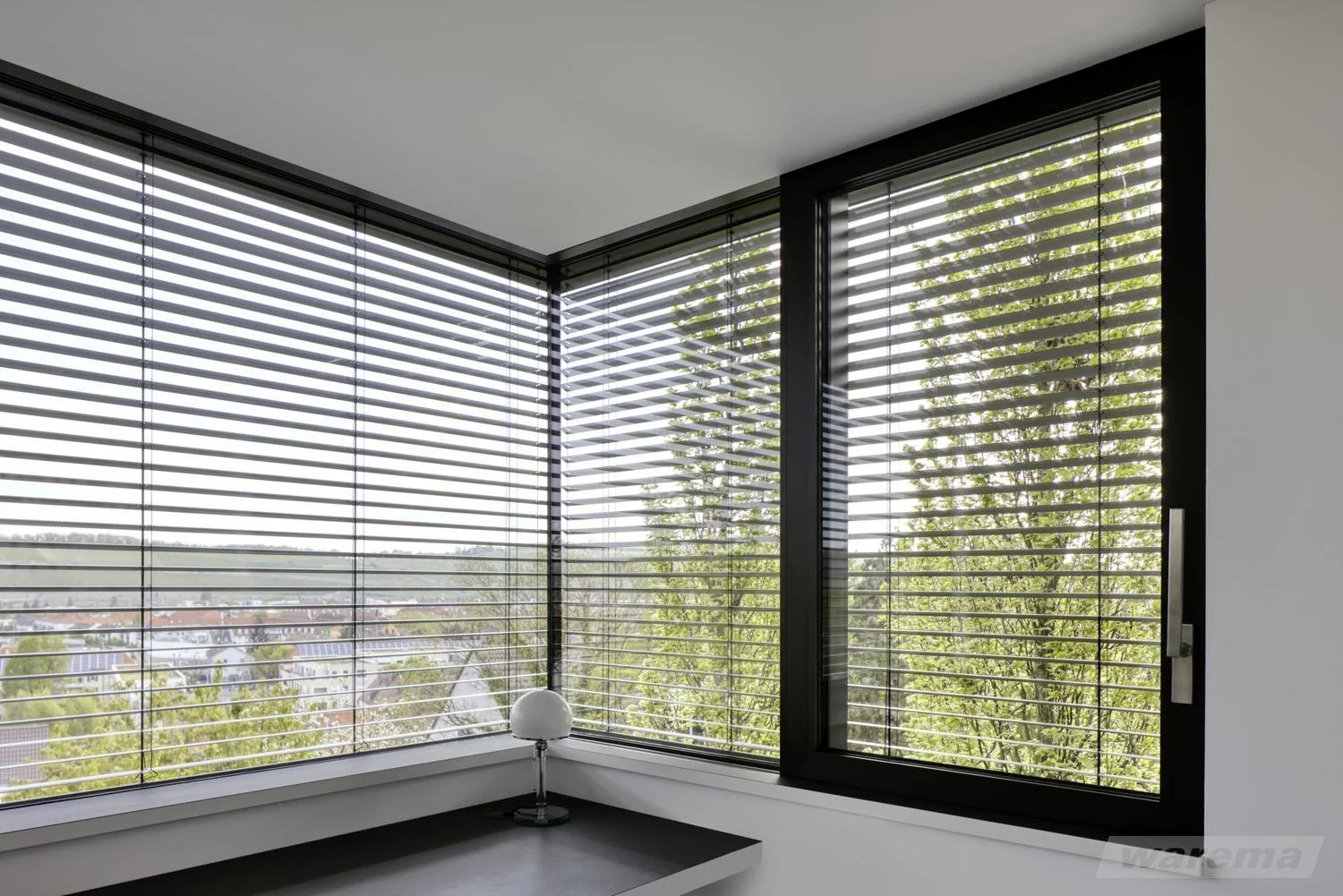

Top Mounted External Venetian Blinds

£0.00

The starting point for all our venetian blind systems, top mounted venetian blinds can be fitted anywhere where the headrail can be top or face fixed. Therefore, are ideal for retro-fit applications or where the blind is to be clad over after installation. When retro-fitted, a wide range of cover profiles are available to cover the blind when retracted.

Options are available for increased wind stability in high wind situations.

Get a quote

The starting point for all our venetian blind systems, top mounted venetian blinds can be fitted anywhere where the headrail can be top or face fixed. Therefore, are ideal for retro-fit applications or where the blind is to be clad over after installation. When retro-fitted, a wide range of cover profiles are available to cover the blind when retracted.

Options are available for increased wind stability in high wind situations.

Get a quote

Additional Information

Top Mounted With Rail Guidance

High wind stability

  • Low wear run

  • Good noise reduction

Types of drive

  • Motor

  • Crank

Sizes

  • Maximum order width - 5000 mm

  • Maximum order height- 5000 mm

  • Maximum order area- 25 m²



  1. Top rail (tilt rod, bearing)

  2. Slats

  3. Tilting tape, lifting tape

  4. Lateral guidance

  5. End rail

Top Mounted With Cable Guidance

Slender appearance

  • Space-saving guidance version

  • Reliable lateral guidance

Types of drive

  • Motor

  • Crank

Sizes

  • Maximum order width - 5000 mm

  • Maximum order height- 4000 mm

  • Maximum order area- 20 m²



  • Top rail (tilt rod, bearing)

  • Slats

  • Tilting tape, lifting tape

  • Lateral guidance

  • End rail

Downloads

Document Name File Type
External Venetian Blinds Overview PDF
Self Build Style Guide PDF
Operating & Maintenance Instructions PDF
Hardware Colour Range PDF
Slat Colour Range PDF

Drawings

Document Name File Type
Top Mounted external venetian blinds with cable guidance, angular cover panel, beaded slats 74331_en PDF
Top Mounted external venetian blinds with cable guidance, angular cover panel, dim-out slats size 73, 90, 93 73134v1_en PDF
Top Mounted external venetian blinds with cable guidance, angular cover panel, flat slats 74332_en PDF
Top Mounted external venetian blinds with rail guidance, angular cover panel, beaded slats 70001v3_en PDF
Top Mounted external venetian blinds with rail guidance, angular cover panel, dim-out slats size 73, 90, 93 70458v3_en PDF
Top mounted external venetian blinds with rail guidance, angular cover panel, flat slats 70122v6_en PDF
Top Mounted external venetian blinds with rail guidance, angular cover panel, dim-out slats 80 Z 73015v1_en PDF
